Many of the casting defects we have covered, from porosity and hot tearing to cold shuts and misruns, can actually be prevented long before a part reaches the production floor: at the design stage. Design for castability (DFC) is a systematic approach to designing part geometry so it is easy to cast with minimal defects, and it is one of the most valuable skills for engineers who work with foundries.

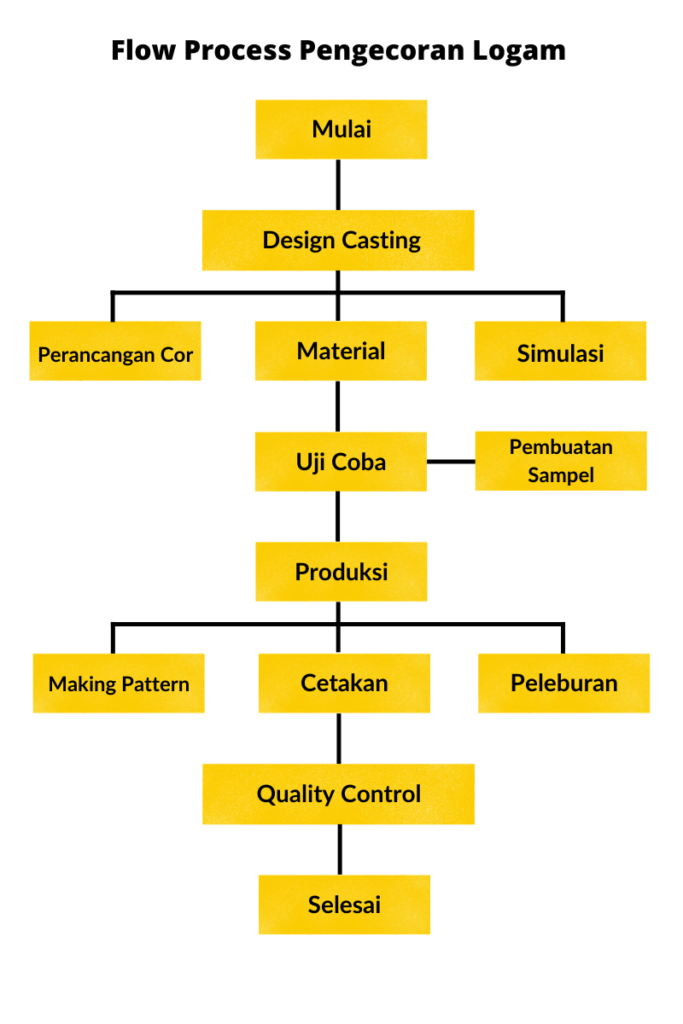

Why Designing It Right Early Beats Fixing It Later
A basic manufacturing principle applies here too: changing a part design on paper is far cheaper than changing it after the production mold has been made, let alone after parts have been produced and failed quality control. Unfortunately, many product designers are not used to thinking from the casting process perspective, which leads to designs that are functionally perfect but difficult and expensive to cast.
Wall Thickness: The Most Fundamental Principle
Uniform wall thickness is the golden rule. Sudden transitions from thick to thin walls create several problems at once: risk of misruns in thin sections, risk of shrinkage porosity in thick sections that solidify more slowly, and potential hot tearing from uneven thermal stress during cooling.
Gradual transitions when different thicknesses cannot be avoided. If the functional design really needs variations in thickness, the transition should be gradual (a taper) rather than abrupt, giving the molten metal time to flow and solidify more evenly.
Minimum thickness depends on material and method. Every combination of material and casting method has a minimum wall thickness that can be filled reliably. High-fluidity aluminum-silicon alloys, for example, can achieve thinner walls than cast steel.
Fillets and Radii: Avoiding Stress Concentrations
Sharp corners in a part design create two problems in casting: stress concentrations that increase the risk of cracking during cooling, and difficulty for the molten metal to fill the sharp corner completely.
The standard solution: add fillets (radii on inside corners) and rounds (radii on outside corners) wherever two surfaces meet. Besides reducing the risk of defects, fillets also give smoother metal flow while the mold fills.
Draft Angle: Making Parts Easy to Release
For casting methods that use permanent or semi-permanent molds, such as die casting, vertical surfaces need a slight taper (draft angle) so the part can be released from the mold without damaging its surface or the mold itself.
General rule: the deeper the mold cavity, the larger the draft angle needed. Ignoring draft forces excessive ejection force, which risks damaging fine surface details or even an expensive metal die.
Avoiding Complicated Undercuts
Undercuts, features that “lock” the part in the mold so it cannot be pulled straight out, add significant complexity to mold design, often requiring dies with extra slide mechanisms or separate sand cores for methods such as sand casting.
Design consideration: if an undercut is functionally unavoidable, evaluate whether a method such as lost foam casting (which does not require conventional mold release) is a better fit than forcing the undercut onto a method that requires direct release from the mold.
Part Orientation in the Mold: An Often Forgotten Factor
How the part is oriented when cast, which side faces up, down, or sideways, affects many aspects of final quality:
Placing critical surfaces. Surfaces that need the highest quality (defect-free, smooth finish) should ideally sit in the most favorable position during solidification, usually not at the very top of the mold, where gas and impurities that float upward tend to collect.
Simplifying riser design. The right orientation makes it easier to place risers on the thickest sections that solidify last, ensuring adequate feeding during solidification without overly complex riser designs.
Early Collaboration Between Product Designers and the Foundry
Design for castability works best through close collaboration between the product design team and the foundry engineering team from the earliest stages of product development, not by sending a final drawing and hoping the foundry will “find a way” to produce it. Early discussion allows small design changes that significantly reduce production defect risk, speed up development, and ultimately lower overall production cost, far more efficiently than discovering problems after the production mold is already finished.
